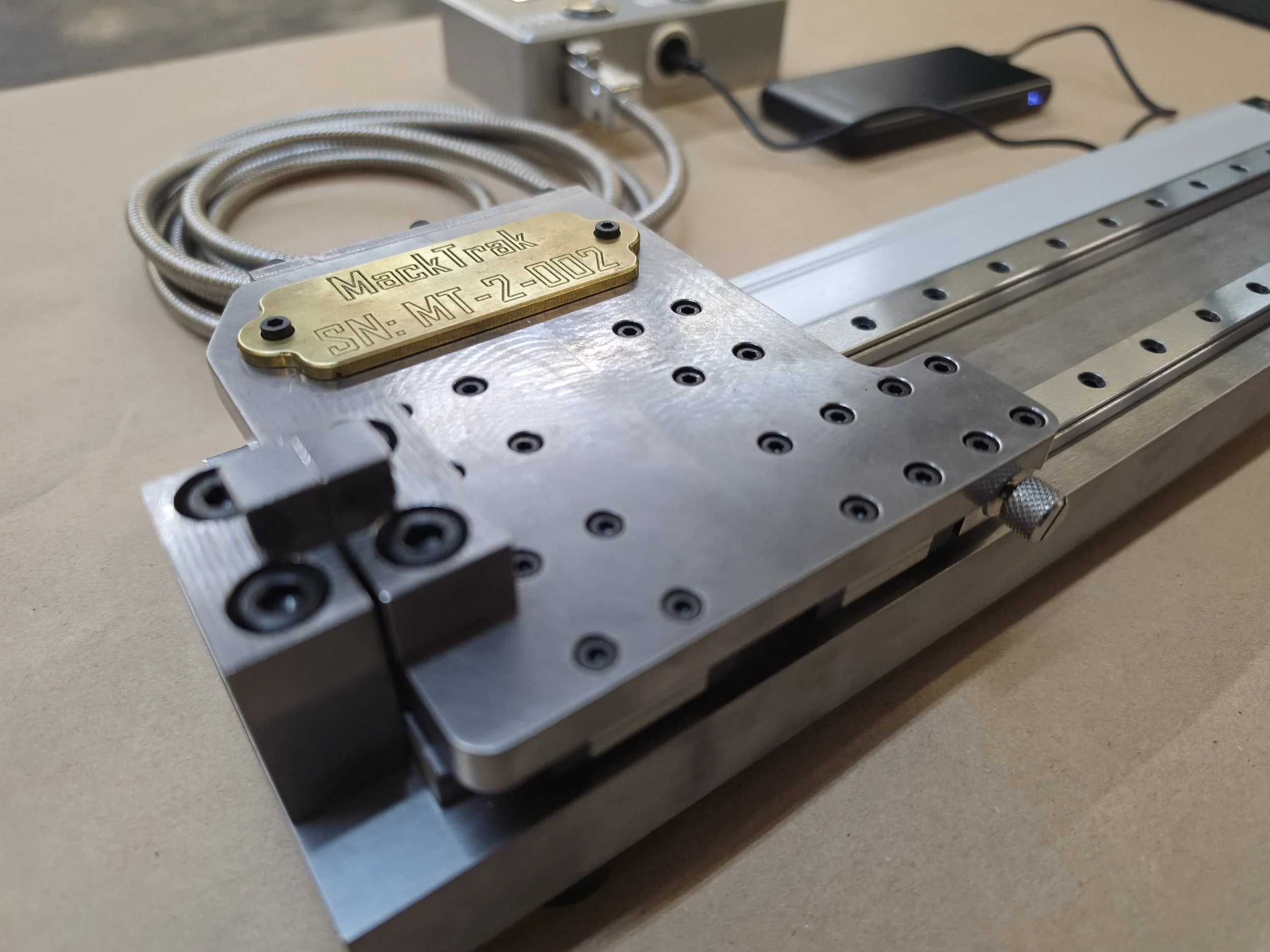

MackTrak

Precision Linear Measurement

  • MackTrak lets you quickly set your caliper and mic to measure MOB and MUB threads

  • Precise and repeatable readouts with .0005” accuracy

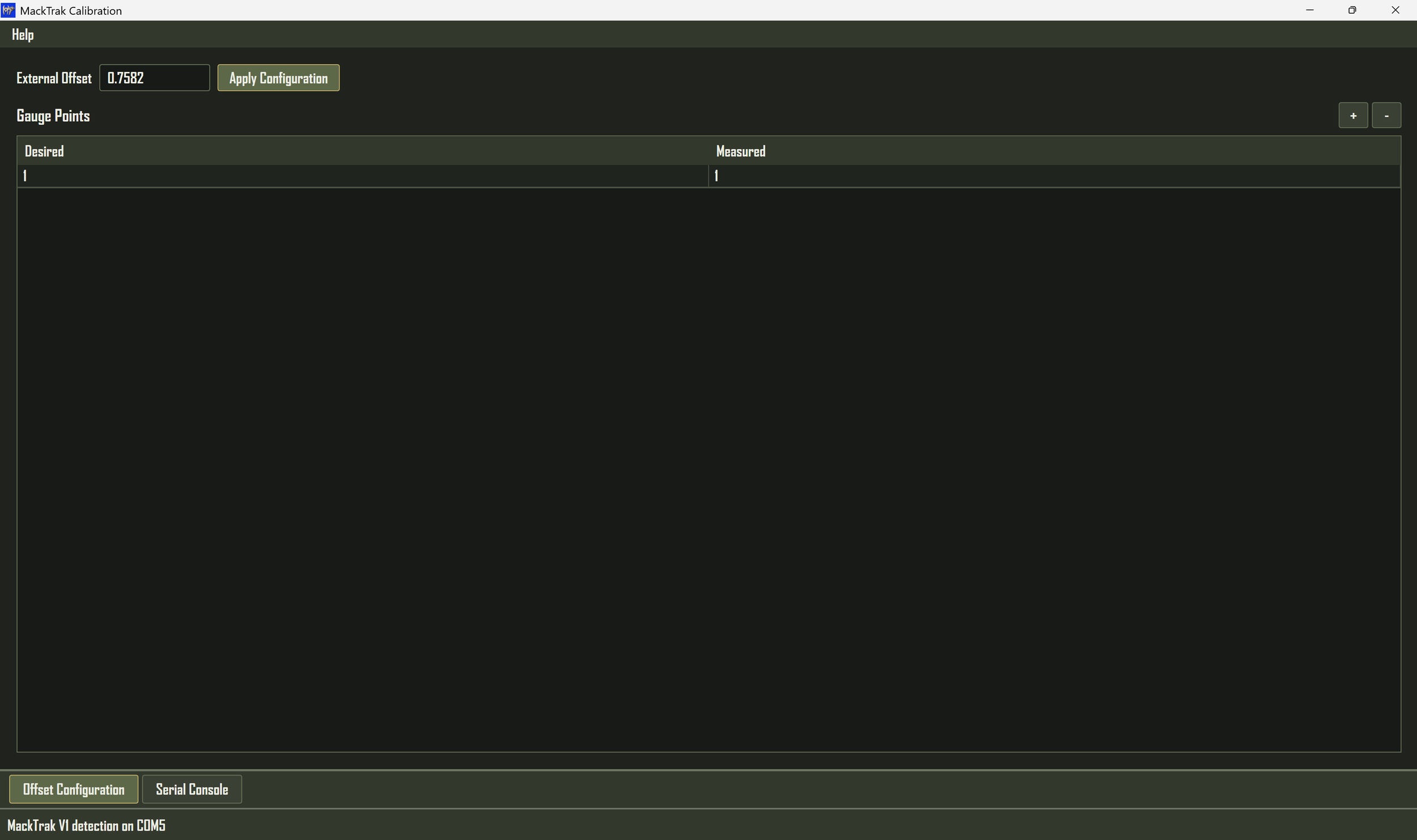

  • 3rd party calibration is simple w/included software – Ensured accuracy

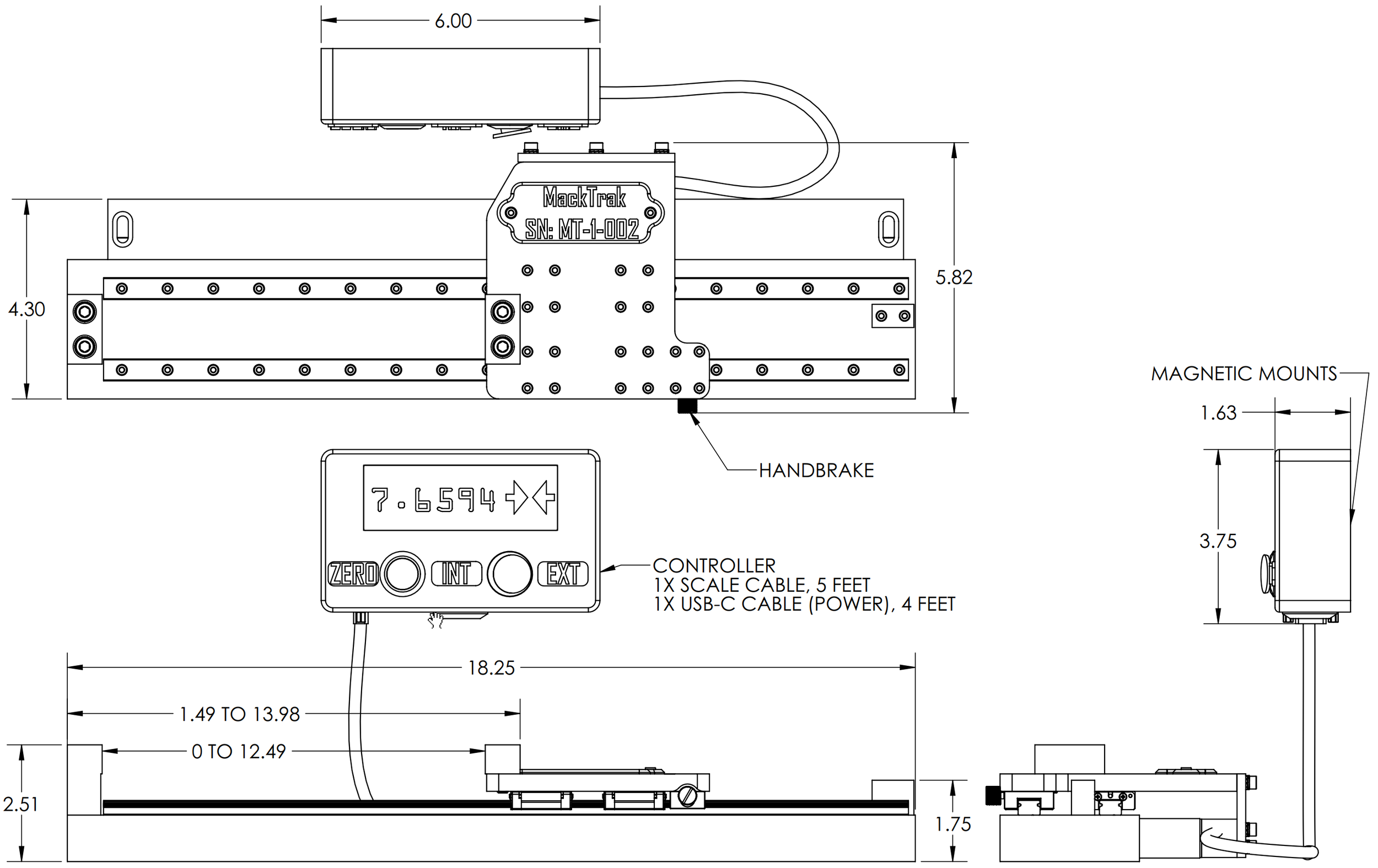

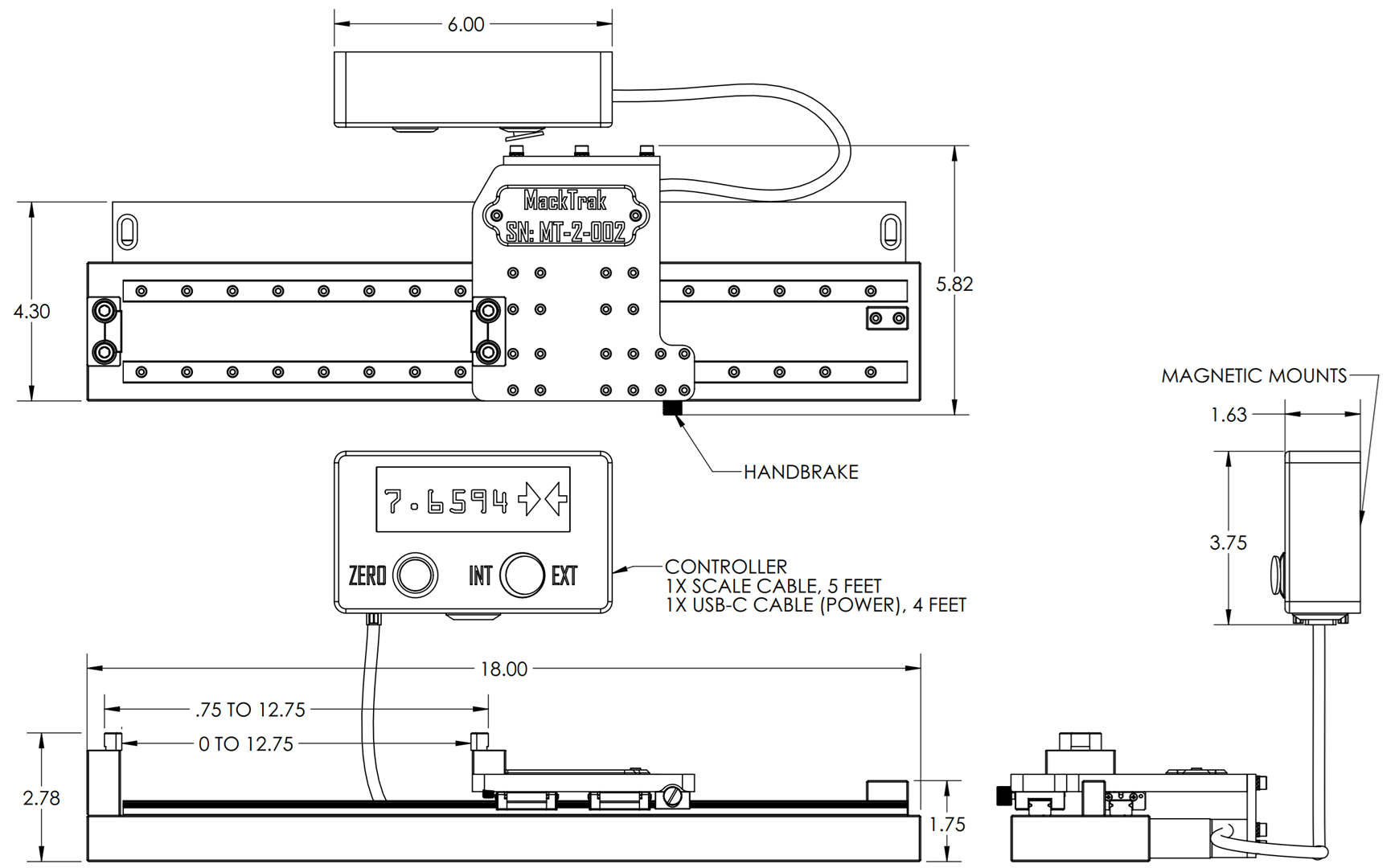

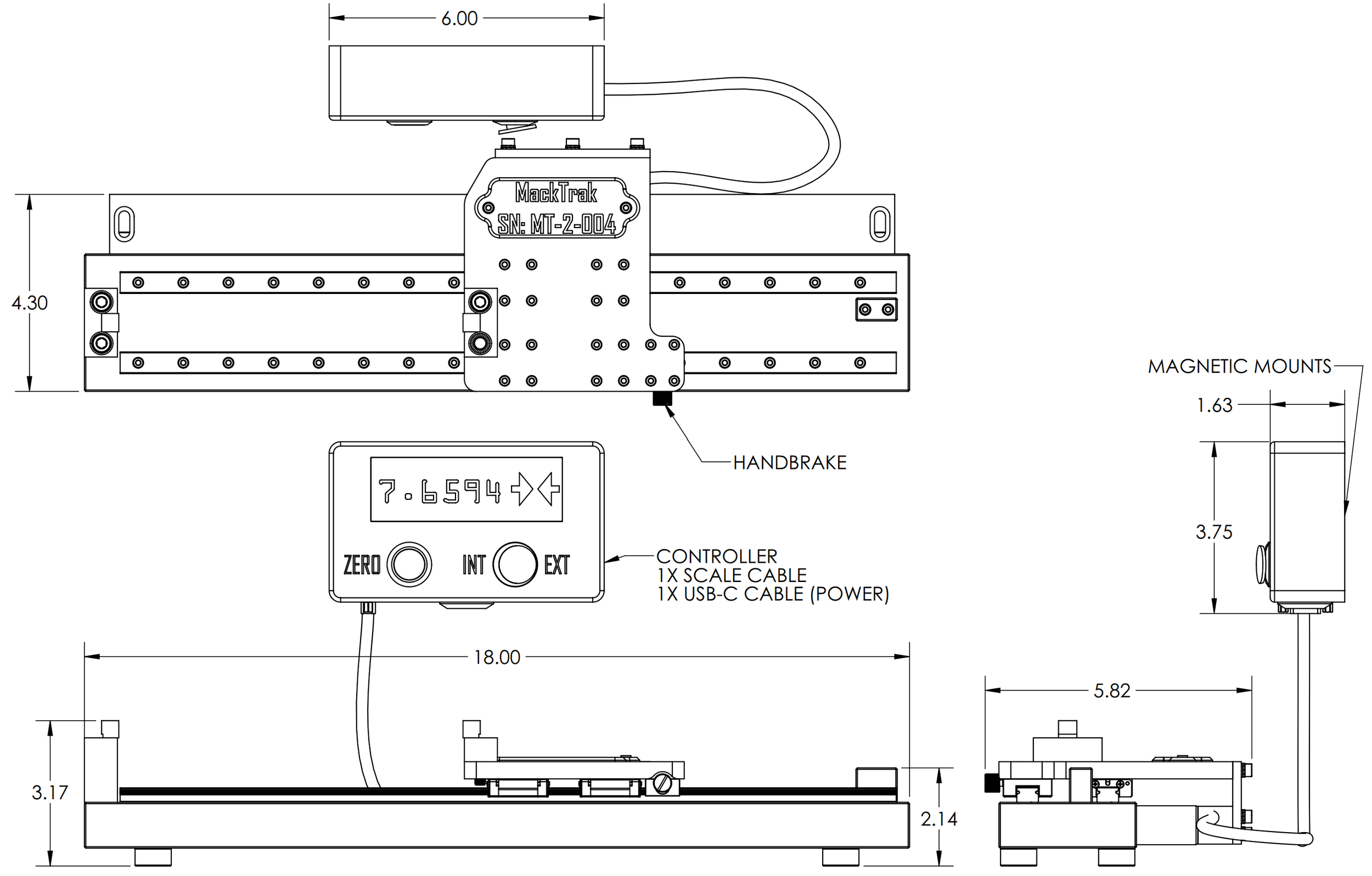

  • Inside measurement range: 0-11.93”; Outside measurement range: .75” - 12.68”

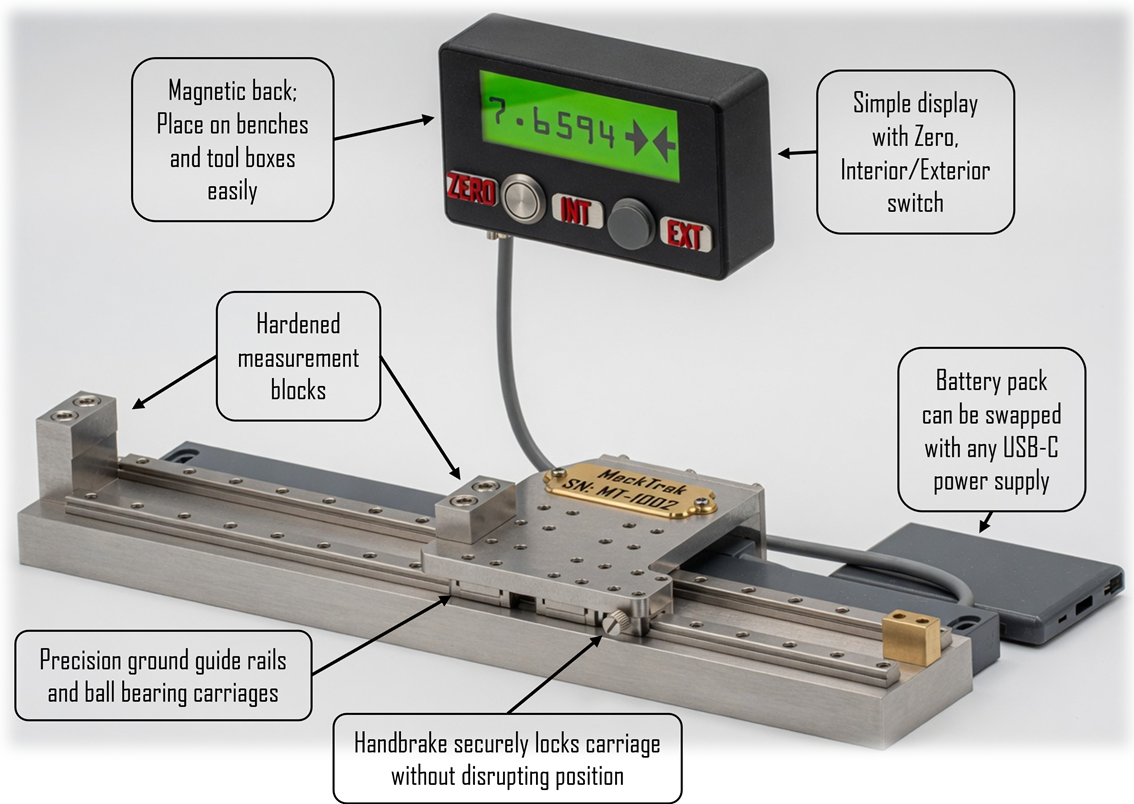

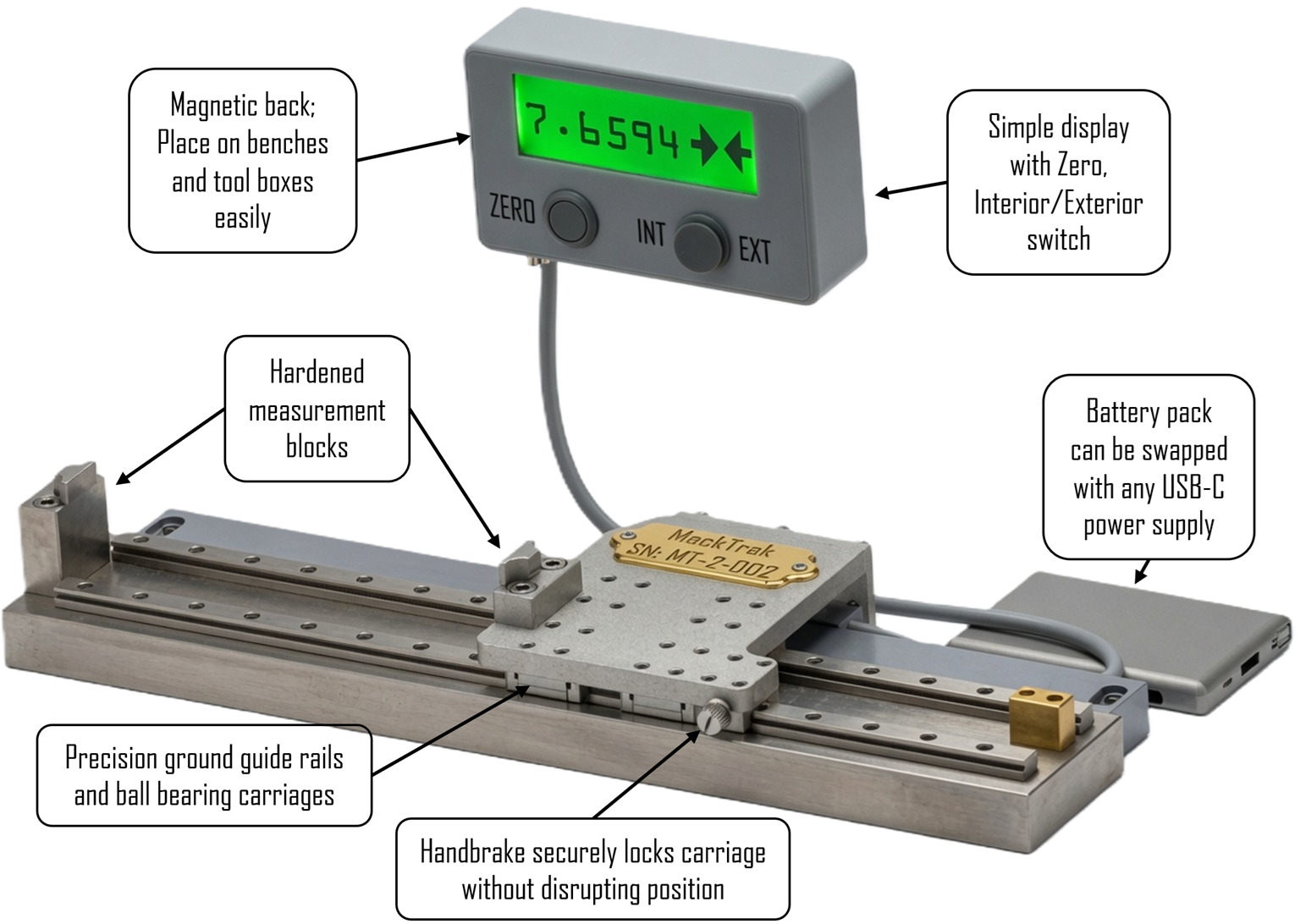

  • High quality construction

    • 4140 Steel structural components - PVD coated with Chrome Nitride (2100 HV Hardness) for lasting durability

    • D2 Tool Steel measurement blocks, hardened faces, CRN coated

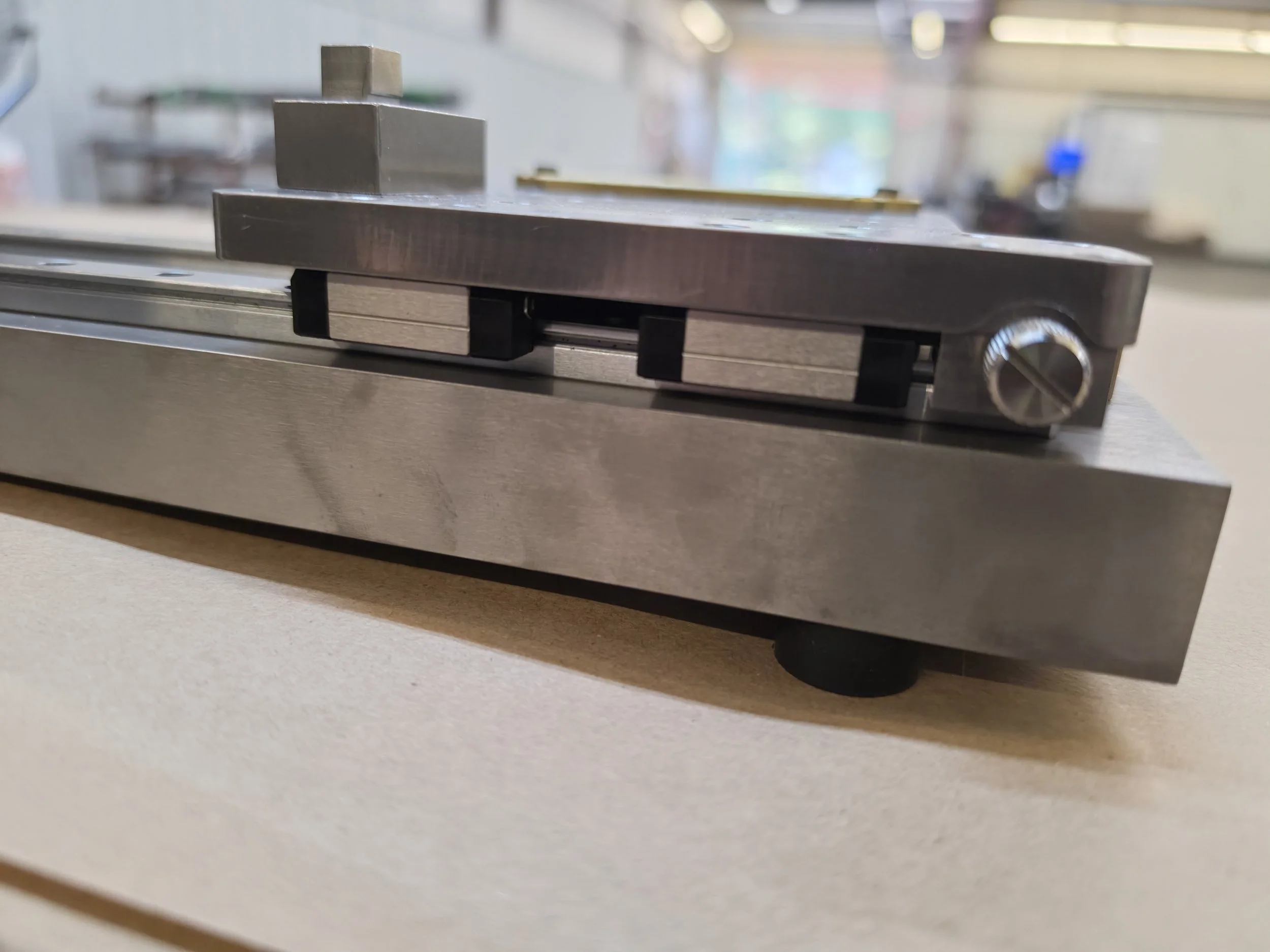

    • Precision linear rail and ball bearing carriages

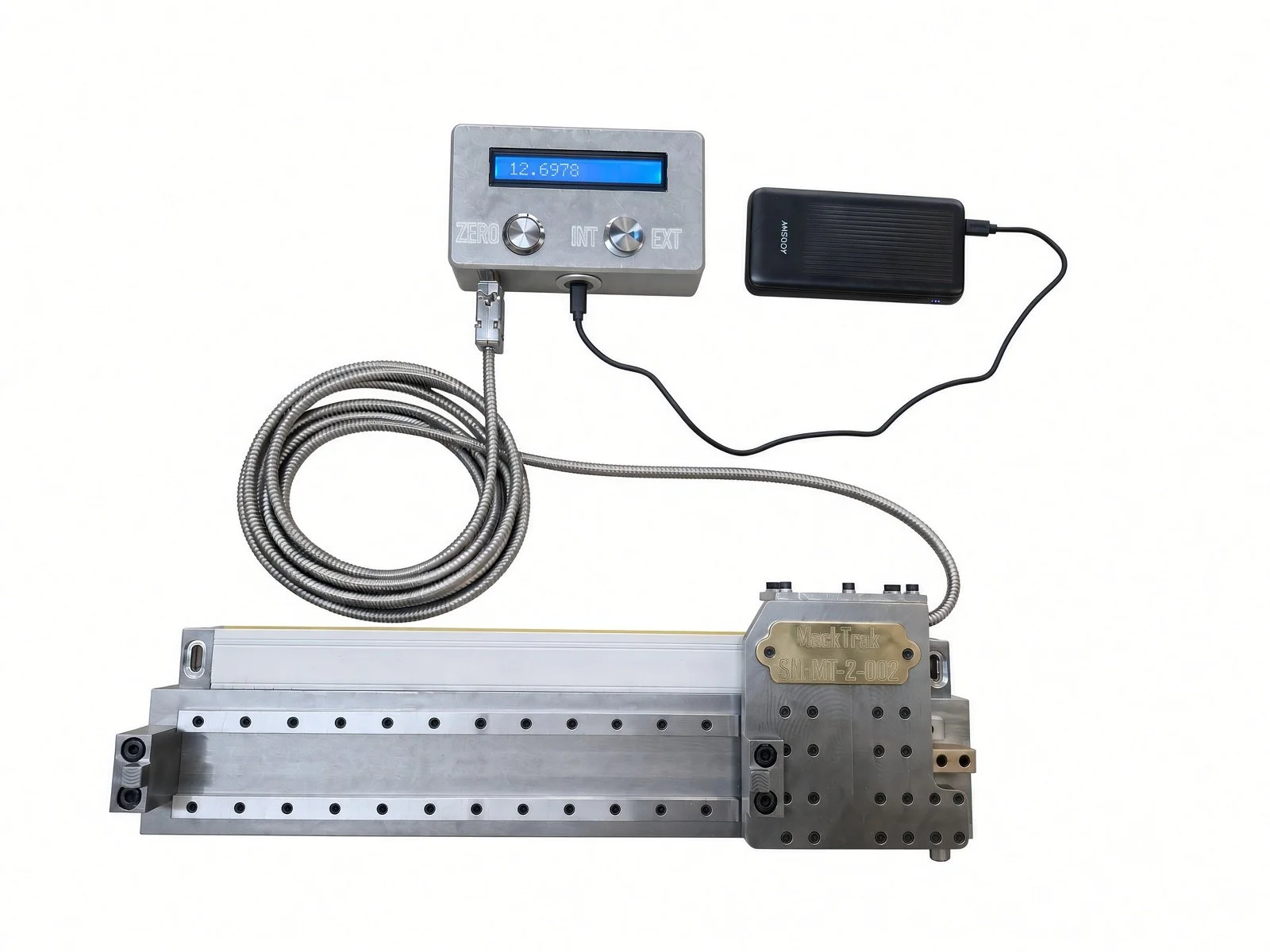

  • Powered and charged by any 5V DC supply; 10 Ah battery pack included

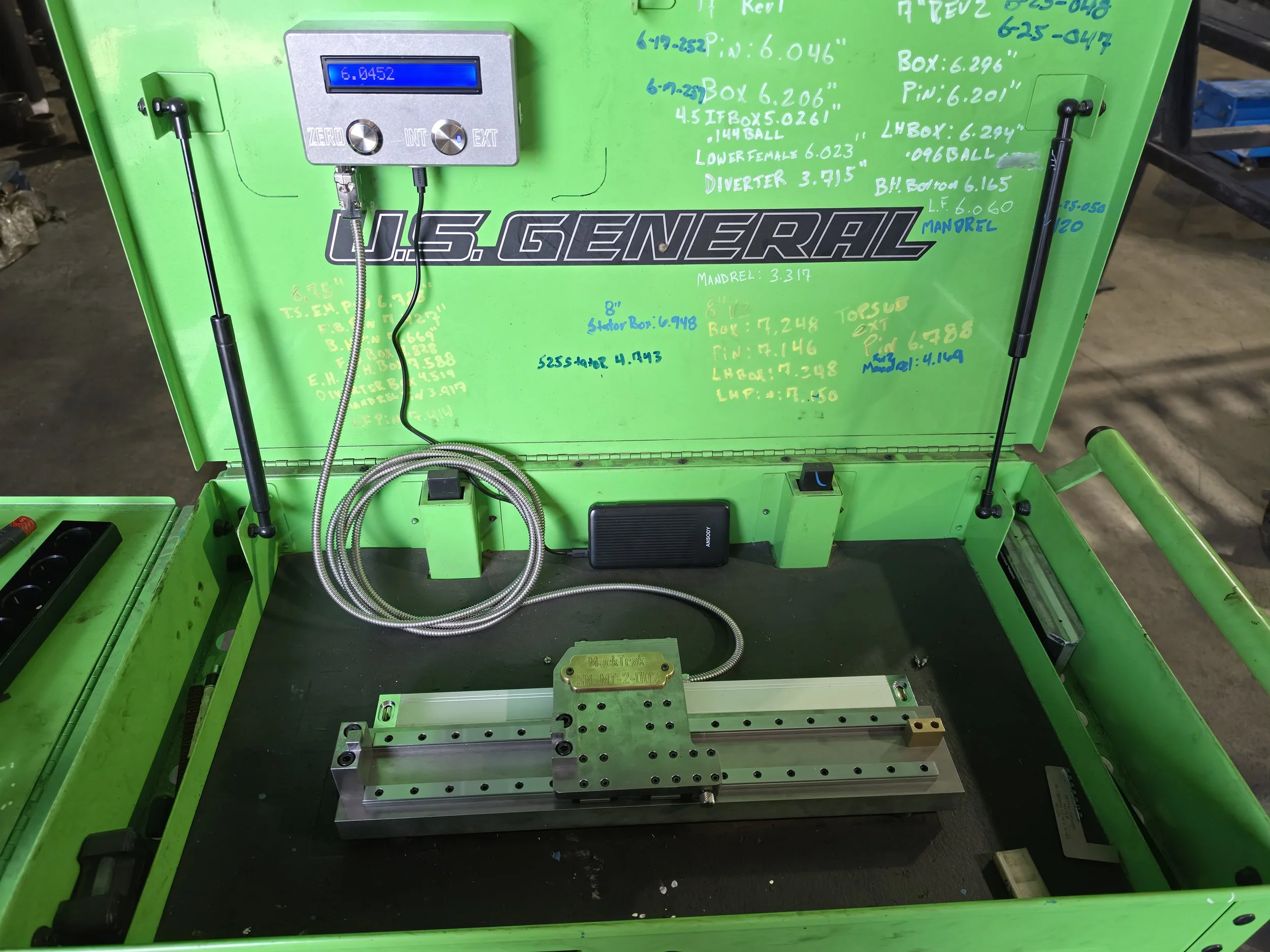

  • Portable and light (19 lbs): Take your inspection standard with you throughout the shop on a mobile workstation (Optional add-on) – Power all day right where you are working

    Base Price : $6325

MackTrak add-ons:

  • 3rd Party calibration w/ certification + $575

  • 30 in, 4-drawer tech cart – transport your MackTrak and additional measurement tools all over the shop + $275

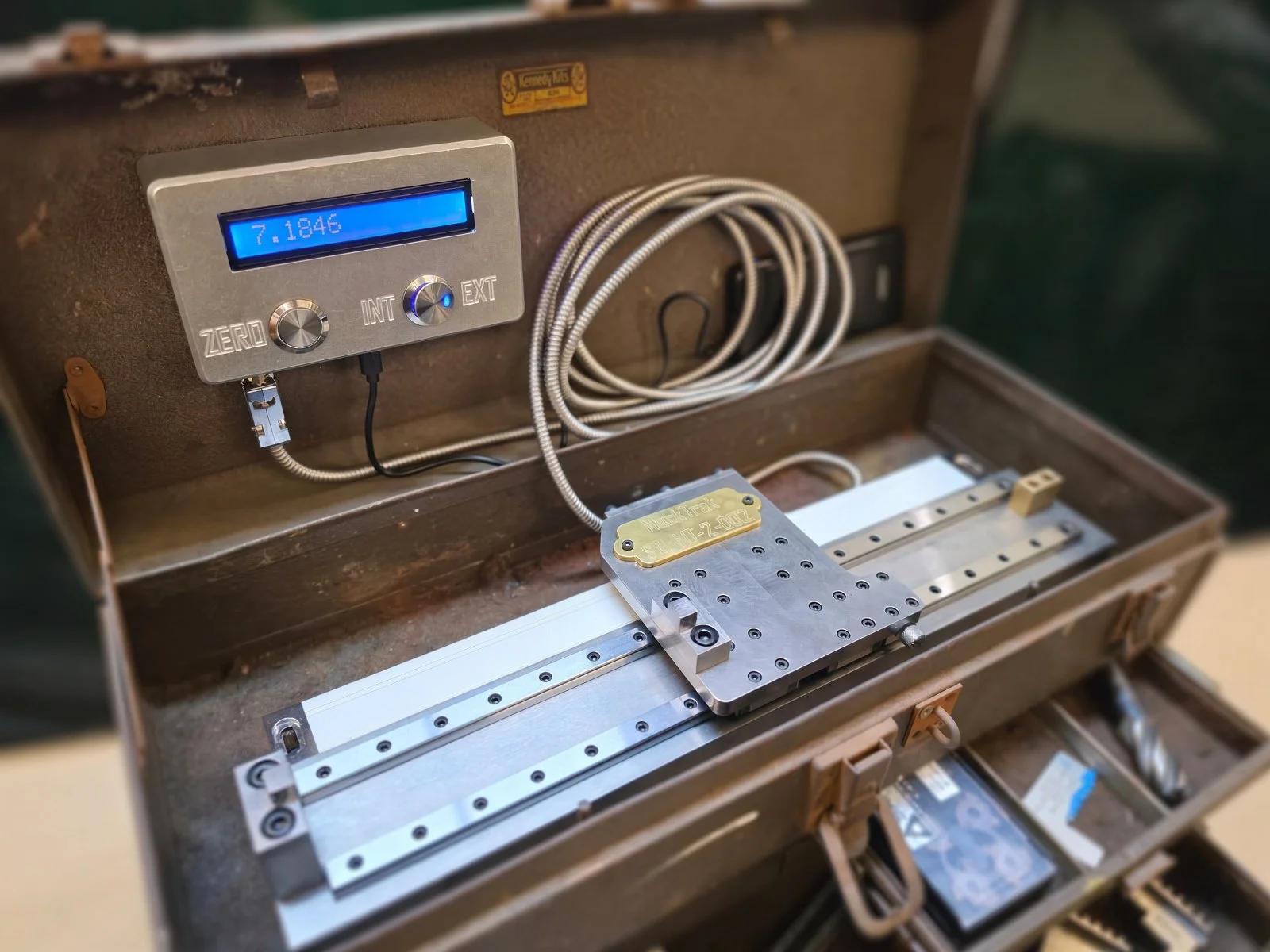

  • Hard weatherproof travel case w/foam inserts + $150

  • Custom units, lengths, hard cases and variations available

MackTrak comes with a 2-year limited warranty

Contact us today to get yours!
